The rossvideo ultra high definition cross conversion board model makes video signal changes simple and clear for any broadcaster. This smart board from Ross Video helps turn one type of video feed into another without losing quality. You can use it for HD to UHD or UHD to HD work. It fits right into your setup and keeps everything running smooth.
What Makes the RossVideo Ultra High Definition Cross Conversion Board Model Stand Out
The rossvideo ultra high definition cross conversion board model is part of the Gator Toolbox line. It works in openGear frames and handles up, down, and cross conversion for HD and UHD 4K signals. You get low latency, which means almost no delay in live shows. This board solves real problems when feeds come in different formats. For example, a remote camera might send 720p while your show needs 2160p. The board fixes it fast.
Ross Video built this board to work with 12G-SDI. That means it handles high-speed data for sharp 4K pictures. You can trust it in busy control rooms or mobile trucks. Many teams pick it because it is reliable and easy to control with DashBoard software.
Key Features of the RossVideo Ultra High Definition Cross Conversion Board Model
Here are the main things you will love about this board. Each one helps you work faster and get better results:
- Motion-Adaptive Processing: The board looks at moving parts in the video and keeps them clear. No blurry edges during sports action.
- Up, Down, and Cross Conversion: Change from HD to UHD or the other way. It even handles 12G, 6G, 3G, and HD-SDI.
- HDR and SDR Support: Switch between PQ, HLG, SLog3, and regular SDR. Colors stay true and bright.
- Frame Sync: Fixes timing issues so all feeds line up perfectly.
- Audio Tools: Shuffle 128 channels, adjust gain, mute, or embed AES audio. Dolby passes through clean.
- Low Latency: Perfect for live events where every second counts.
- High Density: Fit up to 10 boards in one 2RU frame for 10 UHD paths at once.
These features come from real testing in broadcast setups. You get professional results without complicated steps.
Available Models in the RossVideo Ultra High Definition Cross Conversion Board Model Family
Ross Video offers a few versions so you can pick the right one. Each is a rossvideo ultra high definition cross conversion board model with its own extras:
- GATOR-TOOLBOX-2-R4: Basic model with 4 SDI inputs and outputs. Great for most users. Costs around $5,200 and uses a 2-slot rear module.
- GATOR-TOOLBOX-2F-R4F: Adds fiber support for long cable runs. Perfect for big venues.
- GATOR-TOOLBOX-4A-R3A: Includes 8 unbalanced AES audio ports for more sound control.
- GATOR-TOOLBOX-4B-R3B: Comes with 8 balanced AES ports if your system needs that.
All models support single channel for UHD or dual for 3G. You can add licenses later for frame rate conversion or extra HDR LUTs. This way, your board grows with your needs.
How the RossVideo Ultra High Definition Cross Conversion Board Model Works Step by Step
Understanding the process is easy. Here is what happens inside the board:
- The input signal arrives on SDI cables.
- The board checks the format, frame rate, and color space.
- It uses motion-adaptive scaling to resize the picture cleanly.
- Color and HDR mapping happen next to keep colors accurate.
- Audio gets shuffled or embedded if needed.
- The output leaves in your chosen format, perfectly timed.
The whole thing happens with almost no delay. You set it once in DashBoard and it remembers up to 8 presets. No guesswork during a live show.
Real-World Uses in Sports and Live Broadcasting
Sports events need fast, clean signal changes. The 2020 announcement showed how the rossvideo ultra high definition cross conversion board model helps at big games. A truck might get a 720p50 feed but the production runs 2160p59.94. The board converts it on the spot.
Teams use it for:
- Remote feeds from stadiums
- Mixing old HD cameras into new UHD shows
- Sending UHD down to HD for some viewers
- International broadcasts with different standards
One example: A football game in Europe sends 1080i50. Your US truck needs 1080p59.94. The board does the standards conversion with motion-adaptive tech. The picture stays sharp and smooth.

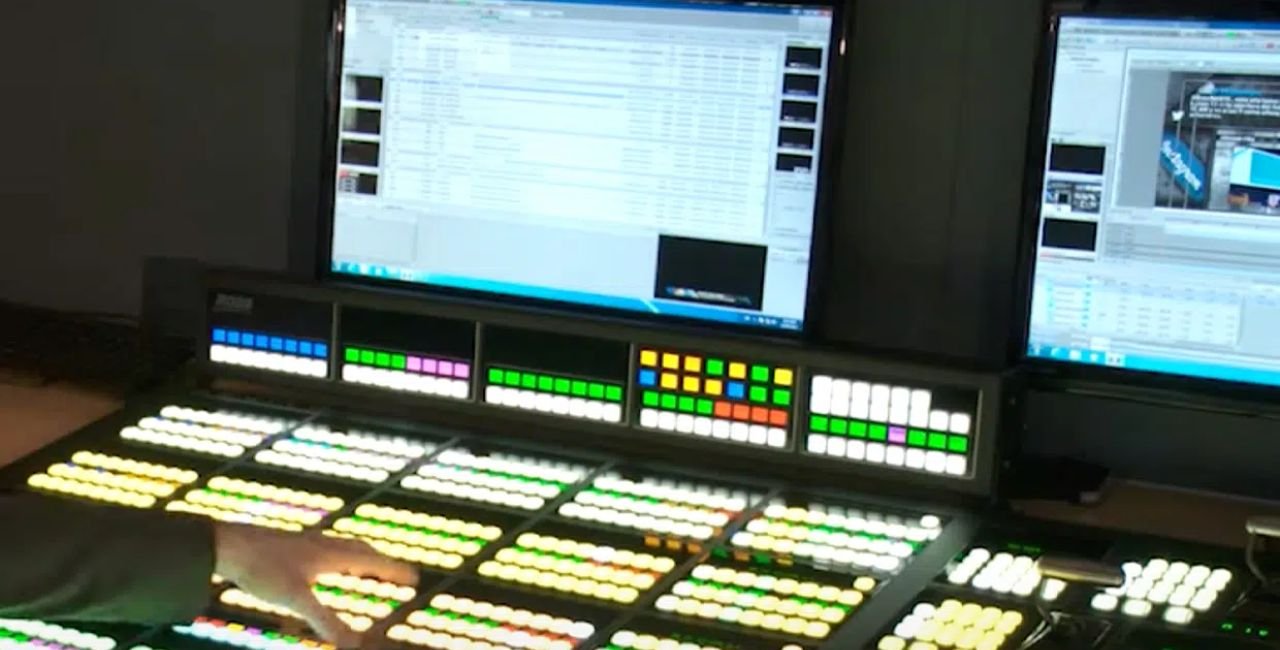

Pairing with Production Switchers Like Carbonite Ultra 60
The Ross Video Carbonite Ultra 60 switcher already has some built-in conversion. But adding the rossvideo ultra high definition cross conversion board model gives you more power. You can handle extra feeds or add fiber links. The switcher supports up to 60 inputs in UHD. Pair it with Gator boards for full flexibility. Check the full details on this switcher here.
This combo works great in studios or outside broadcasts. You get one smooth workflow from camera to final output.
Easy Installation Guide for the RossVideo Ultra High Definition Cross Conversion Board Model
Installing is straightforward. Follow these steps:
- Power off your openGear frame.
- Slide the board into an empty slot.
- Connect the rear module (R4 for basic models).
- Hook up SDI cables to the four inputs and outputs.
- Add reference signal if needed.
- Turn power on and open DashBoard software.
- Set your input and output formats.
- Save your preset and test with a known signal.
The frame holds up to 10 boards, so you can expand later. Fiber versions need an SFP module, but it snaps in easily. Most users finish setup in under 30 minutes.
Advanced Tips for HDR, Audio, and Color Work
Want the best picture? Use the 3D-LUT license for custom HDR maps. It turns PQ into HLG without losing detail. For audio, shuffle channels right in the board instead of using extra gear. Color correction tools fix incoming feeds fast. These extras make your rossvideo ultra high definition cross conversion board model even more useful.
Troubleshooting Common Issues
Sometimes things need a quick fix. Here are easy solutions:
- No picture? Check SDI cables and reference lock.
- Wrong colors? Verify HDR settings match your production.
- Audio dropouts? Make sure embedding is turned on.
- Delay too high? Turn off optional frame rate conversion if you do not need it.
- Board not seen in DashBoard? Restart the frame and check IP settings.
Ross support is famous for quick help. You are never stuck alone.
Why Broadcasters Trust This Board Every Day
The rossvideo ultra high definition cross conversion board model earns trust because it is built for real work. It handles unexpected feeds in mobile trucks. It keeps quality high even when you mix old and new equipment. Density is great – one small frame does the job of bigger racks. Low latency keeps live sports exciting. Plus, free software updates add new features over time.
Many teams switched from older converters and saw sharper pictures right away. The motion-adaptive tech beats basic scalers by a lot.
For more great video tools and options, visit ultrapanda.co and explore what fits your setup.
More Ways to Use the Board in Your Workflow
Think about daily tasks. In a news studio, the board cleans up remote reporter feeds. In concerts, it matches stage cameras to the main truck. For corporate events, it turns any laptop output into broadcast-ready UHD. The possibilities grow with each license you add.
You can also use the test pattern generator to check cables before a show. Or set input failover so the board switches automatically if one feed drops.
Supported Formats and What They Mean for You
The board works with many formats. Here is a simple list:
- UHD 2160p at 23.98, 24, 25, 29.97, 30, 50, 59.94, 60 fps
- HD 1080p and 1080i at common rates
- 720p for older cameras
- SD 576i and 480i for legacy gear
Single-link 12G-SDI or quad-link SQD/2SI – you choose. This flexibility means you never say “no” to a feed again.
Comparing Density and Value
Ten boards in one frame give you 10 UHD paths. That is a lot of power in just 2RU space. Other converters often need more room or cost more per channel. This Ross model gives you high quality at a fair price. The optional licenses let you pay only for what you need.
Future of UHD Conversion and Your Board
4K is here to stay, and 8K is coming. The rossvideo ultra high definition cross conversion board model stays ready with software updates. New HDR standards appear, and the LUT support keeps you current. Fiber and high-speed SDI mean your investment lasts many years.
Frequently Asked Questions
What is the RossVideo ultra high definition cross conversion board model used for? It changes video signals from one format to another so everything matches in your production.
Does it support 12G-SDI? Yes, fully. It also works with 6G, 3G, and HD.
Can I add HDR tools later? Absolutely. Just buy the HDR LUT license.
How many inputs does one board have? Four SDI inputs and four outputs on the basic model.
Is it good for sports? Yes. Low latency and sharp motion handling make it perfect for live games.
Where can I learn more about the format conversion side? See the full details on the official Ross Video page here.
What about the big announcement for this tech? Read the 2020 sports video story here.
Will it work with my Carbonite switcher? Yes, it adds extra power and more conversion paths.
Summary and Final Thoughts
In the end, the rossvideo ultra high definition cross conversion board model is a smart, reliable choice for anyone working with 4K UHD video. It handles tough signal changes, keeps quality high, and fits easily into your gear. You get low latency, great audio tools, and room to grow. Whether you run a small studio or big live events, this board makes your job easier and your pictures sharper.
What do you think about adding the RossVideo ultra high definition cross conversion board model to your next project? Share your thoughts below!
